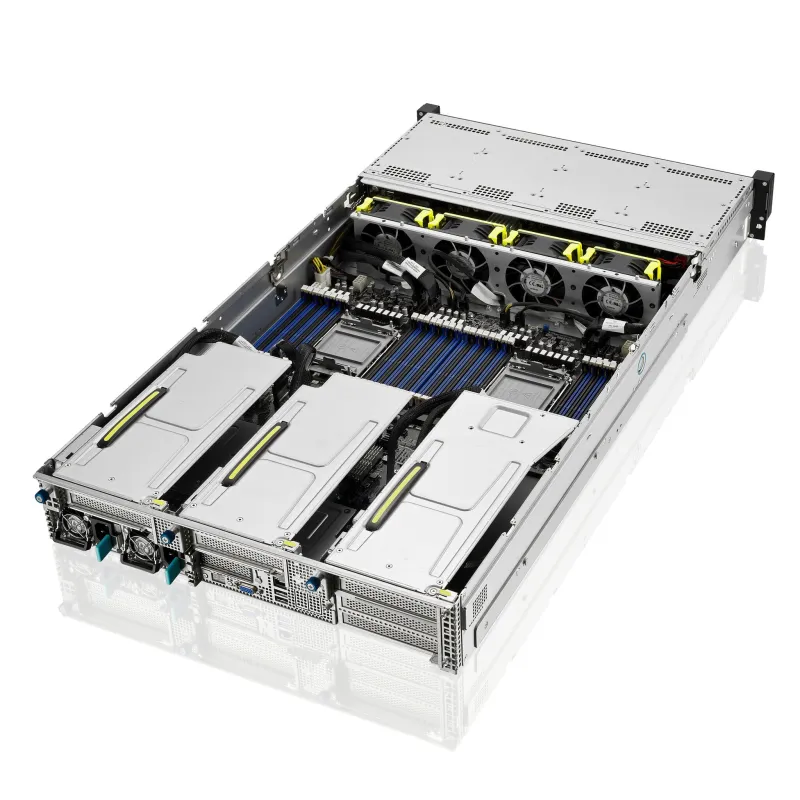

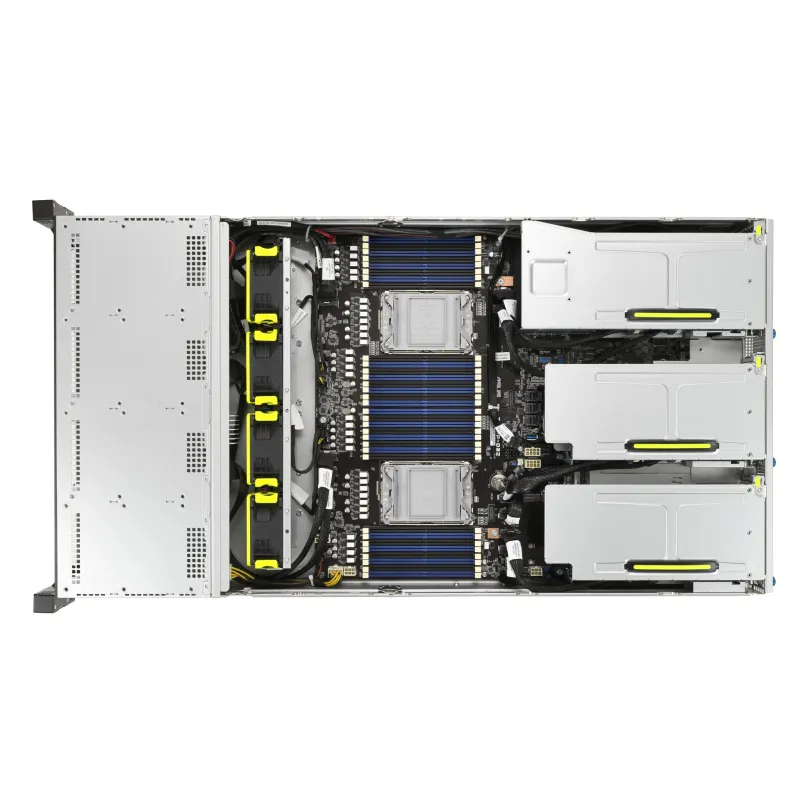

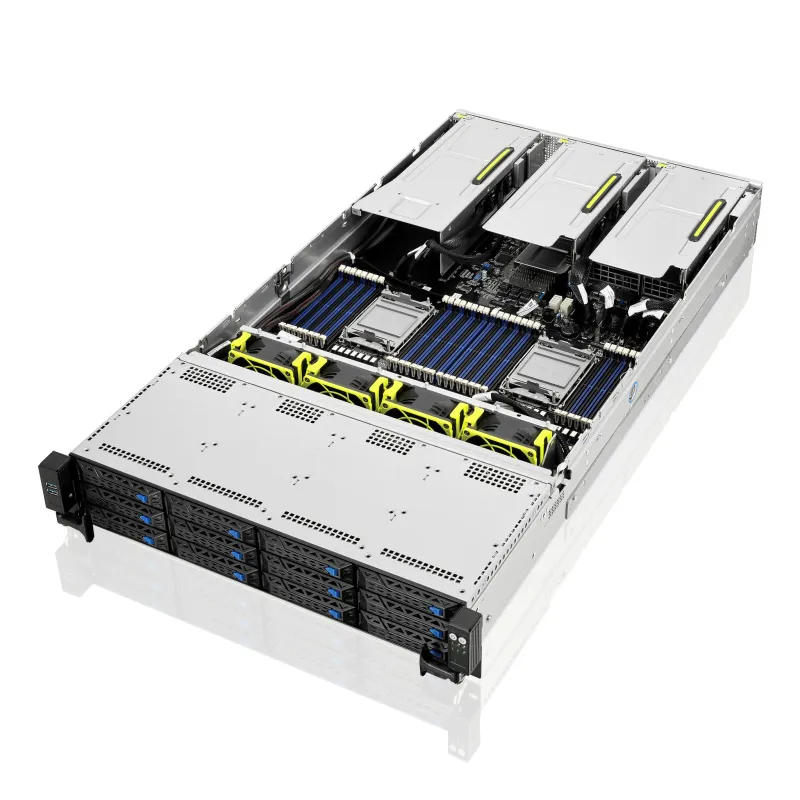

ASUS RS720-E10-RS12E/10G/4NVME(1600W) Intel C621A LGA 4189 Rack (2U) Black

• Powered by dual-socket 3rd Gen Intel Scalable processors, 32 DIMMs and support for a maximum TDP of up to 270 W per socket
• Optional GPU-optimized design allows four dual-slot GPUs for AI workloads
• Up to eight all-flash NVMe and four SATA/SAS drives on front panel, plus 2 optional NVMe in rear panel to enable extensive storage and high-throughput performance
• Up to nine PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
• Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
• Flexible air- and liquid-cooling solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
• Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
• Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
• High power efficiency with redundant 2400 W 80 Plus® Platinum power supplies

3rd Gen Intel® Xeon® Scalable Processors
The latest 3rd Gen Intel® Xeon® Scalable Processors feature core counts from 8 to 40 cores and an array of frequency and power supports, and deliver up to 40% better performance compared to the previous generations. With built-in security features, this new platform delivers outstanding performance in security including encryption, authentication and data integrity across the breadth of standards that are prevalent in networking, enterprise and the cloud.

PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS720-E10 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Four Dual-slot GPUs Support
ASUS RS720-E10 servers feature a powerful GPU architecture that supports up to four dual-slot GPUs such as NVIDIA A100 in one 2U system to enable easy scale-up in order to meet the demands of AI and high-performance computing (HPC), and to securely run workloads in virtualized environments.

ASUS RS720-E10 series are Xilinx Alveo-qualified servers to provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.

CPU-balanced Architecture
The new 3rd Gen Intel® Xeon® Scalable Processors excel at providing full features and functionality for both dual-socket and single-socket platforms, but our new servers ASUS is introducing an CPU-balanced architecture to enable secure and optimal CPU-performance efficiency.

Modular design
ASUS RS720-E10 servers offer a flexible, modular design to enable easy scale-up of configurations to meet increasing data-center workloads.

Scalable storage solution
ASUS RS720-E10 servers feature scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security. Up to 24 all-flash NVMe drives on front panel enable extensive storage and high-throughput performance.

Cooling Solutions
Data centers typically demand high-performance processors, GPUs or memory in dense configurations to run HPC or AI workloads. ASUS RS720-E10 servers feature either air or liquid-cooled solutions, with Asetek’s Direct-to-Chip (D2C) liquid-cooling technology achieving lower power-usage effectiveness (PUE) and optimized TCO for data centers.

Enhanced Security
ASUS RS720-E10 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

In addition, all RS720-E10 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

OCP 3.0
ASUS RS720-E10 servers feature the latest OCP NIC 3.0 card with PCIe 4.0 bandwidth for a faster time-to-market network solution, delivering the speeds of up to 200 Gbps for high bandwidth and low latency. It also features a tool-less, hot-swappable design to simplify installation and serviceability.

Server-management Solution
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
