Rack Optimized Compact Workstation Board for Media Server
Design for rack optimized solution

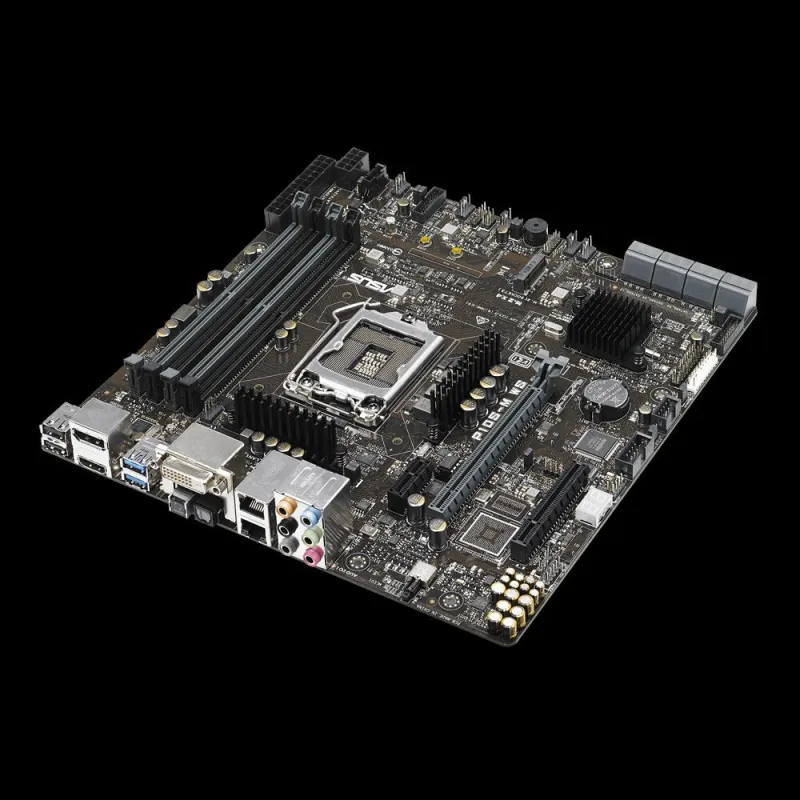

P10S-M WS is the workstation board that’s perfect for media server, cloud gaming, video streaming and so much more. Its thoughtful layout maximizes accessibility to adjust inside temperature, which is great for rack-mounted configuration – so it’s ready to meet enterprise or academia need.
Accelerate to 32Gbit/s data-transfer speeds with M.2, up to 22110
With x4 PCI Express 3.0 bandwidth, one M.2 supports 32Gbit/s data-transfer speeds in Native NVMe – that’s up to 5.3X faster than traditional SSDs. The powerful signal also supports the very latest 2.5-inch NVMe SSDs technology via ASUS M.2-NVME1 (2242) for quick, simple setup.
Furthermore, the M.2 is designed up to 110mm, which is provided most of choices for customers installing various SSD.
Optimized integrated graphic power supported latest API
The P10S-M WS features Intel® Socket 1151 with the C236 chipset specially-designed for workstations. It supported latest API like DirectX 3D 2015, OGL 4.4, OpenGL ES 3.0 and OpenCL2.1. ISV application testing and certification with integrated graphics cores on E3-1200 v5/v6 processors are perfect for entry-level workstations and software such as Autodesk AutoCAD, Autodesk Maya and Adobe After Effects CC, etc. The P10S-M WS is your best choice for a DIY workstation build that rivals top-tier pre-built workstations.
Drive three independent displays simultaneously
P10S-M WS in equipped for total display flexibility, with HDMI, DisplayPort and DVI-D connectivity all built in to the board. With a compatible latest-generation Intel® process, you’ll be able to connect and drive three independent displays simultaneously – great for multitasking, and even better for productivity.
Platinum-Grade Power Efficiency
P10S-M WS is engineered with hand-chosen components to reach platinum-grade power efficiency – that reduces temperatures and switching loss from CPU. The energy-efficient, technologies include:
1.Ultra-durable 12K solid capacitors
2.Beat Thermal Choke III
3.ASUS Digi+ Voltage-Regulator Module (VRM)
Built-in Dual Intel I210 Server-Class Gigabit LAN
For more reliable networking, the P10S-M WS features the latest server class built-in dual Intel® Gigabit LAN. This leads to lower CPU utilization and temperature, achieving outstanding performance as well as better support for diverse operating systems.
Socket LGA1151 for Intel® 6th/7th Generation Core i7/i5/i3 and Xeon E3-1200 v5/v6 Processors
The latest Intel® 6th/7th generation Core™ i7/i5/i3, Xeon E3-1200 v5/v6, and Pentium/Celeron series processors in the LGA1151 package are supported, with memory and PCI Express controllers integrated to enable 2-channel (4 DIMM) DDR4 memory and x16 PCI Express 3.0 slots. They provides great graphics performance and become as most powerful and energy efficient CPUs in the world.
Intel® C236 Express Chipset
The Intel® C236 Express is the latest single-chipset design, supporting the new socket LGA1151 Intel® Core™ i7/i5/i3 6th generation processors and Intel® Xeon® E3-1200 v5/v6 server processors. It improves performance by utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally, the C236 comes with eight SATA 6Gb/s ports for faster data retrieval, doubling the bandwidth of current bus systems. It also supports Intel’s iGPU integrated graphics.
