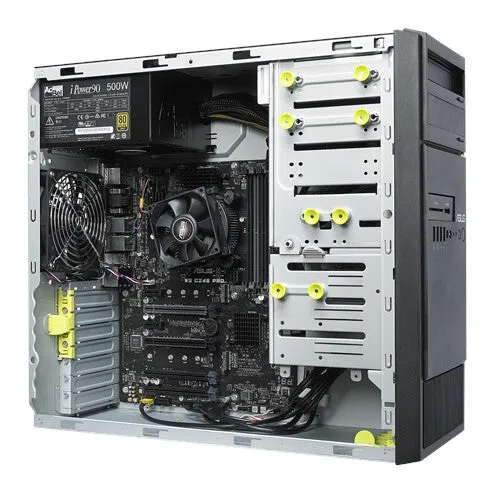

ASUS E500 G5 Full-Tower Black Intel C246 LGA 1151 (Socket H4)
- Powerful performance with Intel® Xeon® E processor and ECC memory
- Supports up to three independent displays simultaneously via HDMI, DisplayPort, DVI-D and VGA
- Improved productivity with ASUS Control Center
- Graphics card support, including NVIDIA® Quadro® and AMD® Radeon™ Pro
- Dual M.2 for up to 32Gbps performance and data redundancy
- Convenient I/O design and ultrafast connectivity
- Dual Intel® Gigabit LAN with teaming support
- Enhanced security with TPM 2.0 and chassis intrusion design
- Independent software vendor (ISV) certification
Powerful performance with Intel Xeon E CPUs and ECC memory
E500 G5 is built on the Intel C246 chipset and comes with a choice of the latest Intel Xeon E or 8th Generation Intel Core™ CPUs. With Intel Xeon, E500 G5 delivers powerful, optimized performance for always-on usage scenarios and supports error-correction code (ECC) memory for automatic detection and repair of single-bit memory errors, reducing the change of system crashes and data corruption to ensure reliable and responsive workstation performance.
Graphics card support
E500 G5 supports NVIDIA Quadro and AMD Radeon™ Pro graphics cards, making it the perfect workstation for content creators, media streamers and professional designers.
Supports up to three independent displays simultaneously
Designers rely on multiple displays for more efficient and comfortable productivity. E500 G5 comes equipped for total display flexibility with support for up to three independent displays via HDMI, DisplayPort, DVI-D and VGA, perfect for multitasking environments.
Improved productivity with ASUS Control Center
E500 G5 features centralized IT-management with ASUS Control Center (ACC), a comprehensive control platform with a user-friendly interface that provides access to all of your workstations from anywhere via your mobile device. It is designed to improve system reliability, facilitate easy updates and provide seamless integration for small to medium-size business and enterprises for increased productivity.
Independent software vendor (ISV) certification
Independent software vendor (ISV) software is becoming an important factor to users in variety of industries. ASUS works in close partnership with ISV vendors, such as Adobe and Autodesk, to test and verify compatibility. This ensures ASUS workstations are reliable and highly effective for users in different fields.
Dual M.2 for up to 32Gbps performance and data redundancy
E500 G5 features dual M.2 slots to unleash maximum data-transfer performance. One M.2 slot supports up to 22110-length M.2 drives via PCIe 3.0 x4 for ultrafast data access. The other M.2 slot is suitable for SATA drives or Intel® Optane memory via PCIe 3.0 x2 to speed up traditional hard drives.
Dual Intel Gigabit LAN with teaming support
For more reliable networking, E500 G5 features Intel Gigabit LAN, ensuring lower CPU utilization and temperatures, outstanding performance and better support for diverse operating systems. The dual Ethernet ports support teaming, which combines the network links to provide higher throughput or redundancy in case of port failure.
| Processor | |
|---|---|
| Built-in processor | No |
| Memory | |
|---|---|
| Non-ECC | Yes |
| ECC | Yes |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2400,2666 MHz |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Storage | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 10 |
| Storage drive interface | M.2, PCI Express, Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Network | |
|---|---|
| LAN controller | Intel® I210-AT, Intel I219LM |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Number of SATA III connectors | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 2.0 ports quantity | 2 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 4 |
| PCI Express x1 slots | 2 |
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| LED indicators | Yes |
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | Full-Tower |
| Performance | |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Xeon® |
| Number of processors supported | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Motherboard chipset | Intel C246 |
| Certificates | |
|---|---|
| Certification | BSMI, CCC, CE, FCC(Class B) |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Power | |
|---|---|
| AC input voltage | 220 – 240 V |
| AC input frequency | 50 – 60 Hz |
| AC adapter output current | 6 A |
| Number of power supply units | 1 |
| Power supply | 300 W |
| Power supply type | Internal power supply unit |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 – 35 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 20 – 90% |
| Weight & dimensions | |
|---|---|
| Package weight | 14.5 kg |
| Weight | 12.7 kg |
| Height | 423 mm |
| Depth | 435 mm |
| Width | 190 mm |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Power cord included | Yes |
