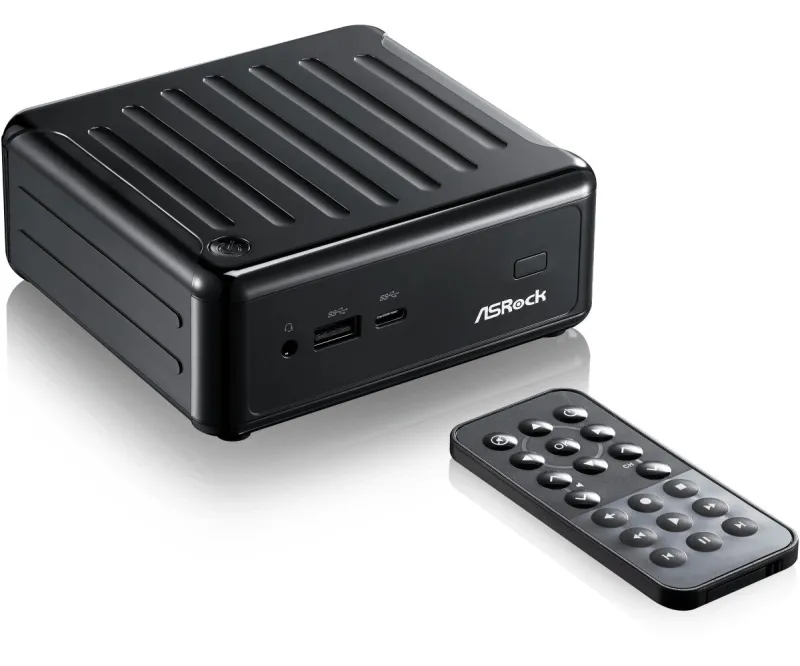

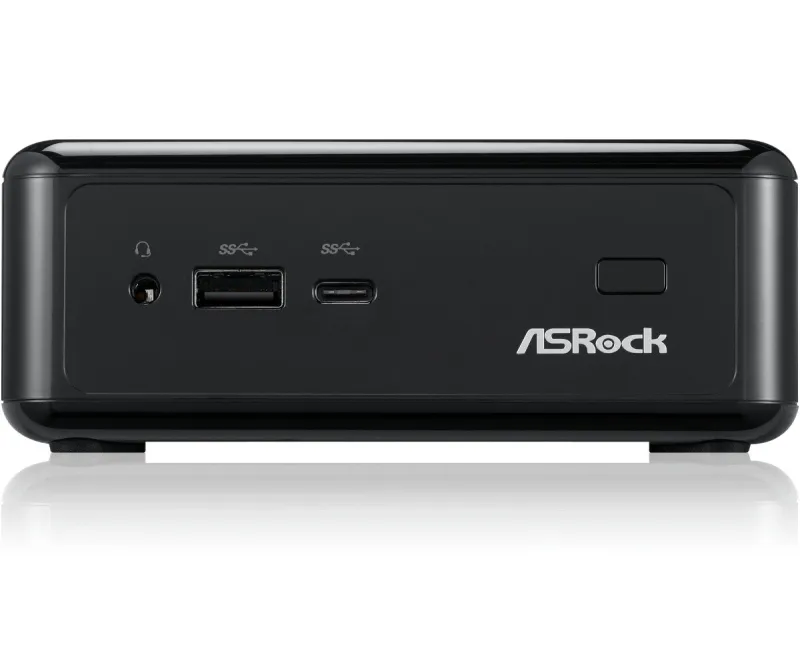

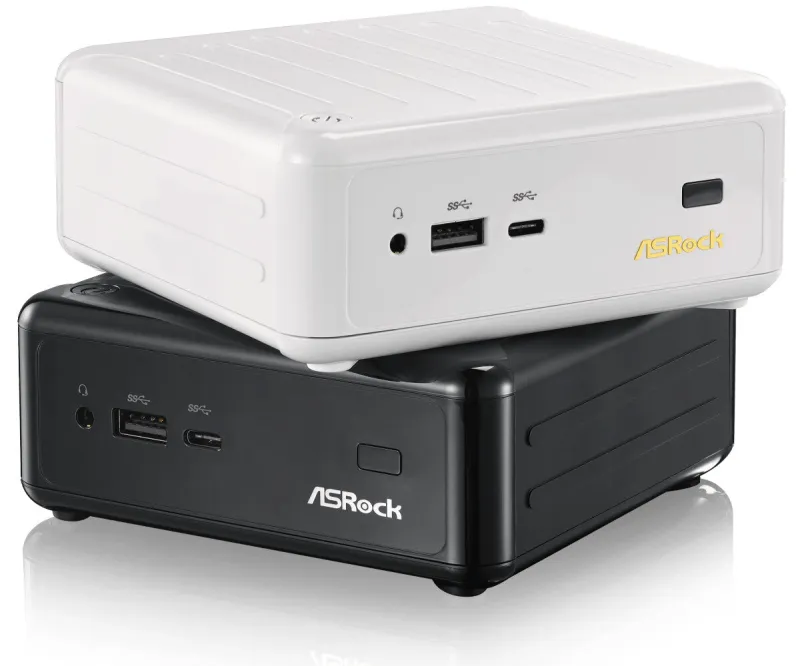

Asrock Beebox N3010-NUC 0.6L sized PC Black BGA 1170 1.04 GHz
- Powered by the Intel® N3000/J3000 Series Processor Family
- Dual Channel DDR3L SO-DIMM (Max. 16GB)
- Hyper speed WiFi 802.11ac, also works as a wireless access point
- Supports two storage devices for added flexibility (1 x 2.5″ SATA3 HDD + 1 x mSATA)
- Supports Triple Monitor (2 x HDMI, 1 x DisplayPort)
- Smooth and ultra high resolution 4K/2K/30Hz playback
- The world’s first NUC paired with an USB Type-C port
- A free bundled remote controller for controlling your PC wirelessly
- Offers rich features in a tiny 0.6L package
A home theater system for your living room that’s also quiet enough for your bedroom, and powerful enough for a daily computing PC.
A miniature PC for office tasks, stock monitoring, educational purposes or even digital signage. Makes your business bloom in no time.
Triple Monitor
Lights up three monitors simultaneously via two HDMI ports and one DisplayPort.
4K Support
The only system in the segment that supports dual channel memory for supporting 4K video playback.
Supports Up to 48CH H.265 IP Cameras
Beebox is able to work as an industrial grade 48 channel NVR (Networking Video Recorder) system. It is also capable of HEVC (H.265) recording for up to 48 IP cameras in D1 (704×576) resolution.
Swift Data Transfer and Device Charging – Type-C USB
The World’s First NUC with a USB Type-C Port.
USB Type-C doubles the charge speed!
The Fastest Wireless Internet – 802.11ac WiFi
Beebox comes with an exclusive 802.11ac WiFi (2.4G/5G WiFi) module and also works as a wireless access point.
Quiet Design
A fanless design that produces absolutely zero noise.
Remote Controller
A free bundled remote controller for Beebox.
Power Gear
Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.
| Processor | |
|---|---|
| CPU configuration (max) | 1 |
| Processor codename | Braswell |
| Processor series | Intel Celeron N3000 series |
| Thermal Design Power (TDP) | 4 W |
| L2 cache | 2 MB |
| Processor lithography | 14 nm |
| Processor frequency | 1.04 GHz |
| Processor boost frequency | 2.24 GHz |
| Processor threads | 2 |
| Processor cores | 2 |
| Processor model | N3010 |
| Processor family | Intel® Celeron® |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Maximum internal memory | 16 GB |
| Memory channels | Dual-channel |
| Supported memory types | DDR3L-SDRAM |
| Supported memory clock speeds | 1600 MHz |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Number of storage drives supported | 2 |
| Storage drive interface | Serial ATA, mSATA |
| SSD form factor | mSATA |
| Storage drive sizes supported | 2.5″ |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Maximum resolution | 4096 x 2304 pixels |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB charging | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DisplayPort version | 1.1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | |
|---|---|
| PCI Express configurations | 1×2+2×1, 1×4, 2×2, 4×1 |
| PCI Express slots version | 2.0 |
| Design | |
|---|---|
| Product type | Mini PC barebone |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Housing material | Plastic |
| LED indicators | Yes |
| On/off switch | Yes |
| Cooling type | Passive |
| Product colour | Black |
| Chassis type | 0.6L sized PC |
| Performance | |
|---|---|
| Audio chip | Realtek ALC283 |
| Processor socket | BGA 1170 |
| Processor special features | |
|---|---|
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Rapid Storage Technology | No |
| Embedded options available | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel Smart Connect Technology | No |
| Intel® Secure Key | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | No |
| Intel Clear Video Technology | Yes |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| General | |
|---|---|
| Product family | Beebox |
| Software | |
|---|---|
| Linux operating systems supported | Fedora 23, Ubuntu 14.04, Ubuntu 15.04, Ubuntu 15.10 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Power | |
|---|---|
| AC adapter output voltage | 12 V |
| Number of power supply units | 1 |
| Power supply | 36 W |
| Power supply type | External AC adapter |
| Weight & dimensions | |
|---|---|
| Height | 46 mm |
| Depth | 118.5 mm |
| Width | 110 mm |
