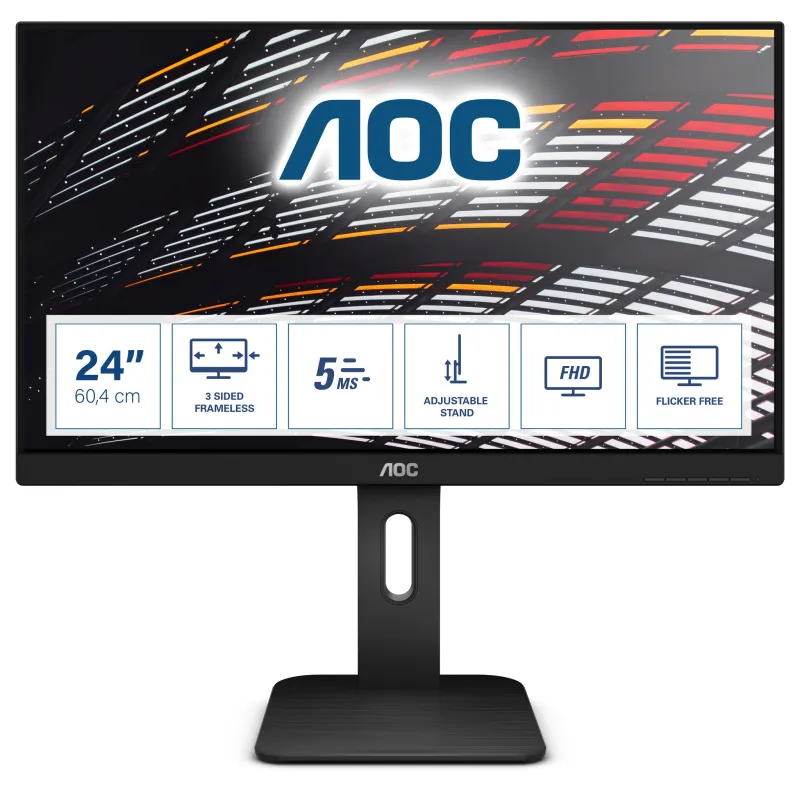

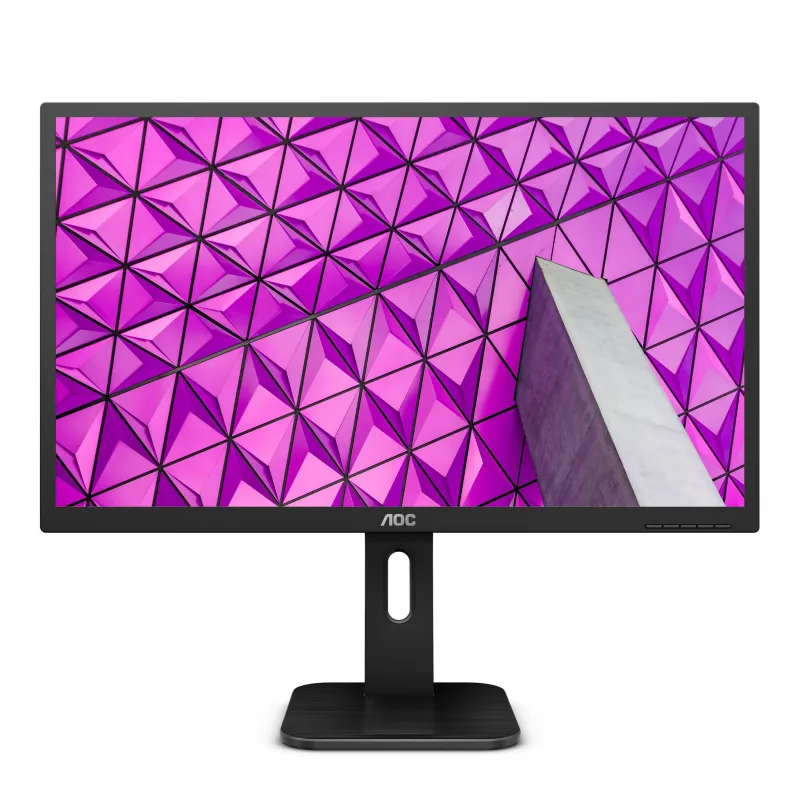

AOC P1 24P1 computer monitor 60.5 cm (23.8″) 1920 x 1080 pixels Full HD LED Black
- 60.5 cm (23.8″) LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 60 Hz 5 ms 250 cd/m² 1000:1
- Flicker-free technology
- E 18 kWh 16.73 W
3-sides borderless 23.8” IPS display with Full HD
Sleek and elegant thanks to 3-sides borderless design, achieved thanks to the newest IPS panel in FHD (1920x1080px) resolution. Includes full range of display inputs (VGA, DVI, HDMI, DisplayPort), built-in speakers and improved ergonomic stand with 150 mm height adjustment.
| Display |
| Adobe RGB coverage |
78% |
| sRGB coverage (typical) |
106% |
| Colour depth |
6 bit |
| Surface hardness |
3H |
| Display diagonal (metric) |
60.452 cm |
| Digital horizontal frequency |
30 – 83 kHz |
| Viewable size, vertical |
29.6 cm |
| Viewable size, horizontal |
52.7 cm |
| Vertical scan range |
50 – 76 Hz |
| Horizontal scan range |
30 – 83 kHz |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (dynamic) |
50000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:9 |
| Supported video modes |
1080p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Screen shape |
Flat |
| Display surface |
Matt |
| Response time |
5 ms |
| Display brightness (typical) |
250 cd/m² |
| Backlight type |
W-LED |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8″) |
| Performance |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Fast charging |
Yes |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in microphone |
No |
| Built-in camera |
No |
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Feet colour |
Black |
| Detachable stand |
Yes |
| Front bezel colour |
Black |
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
| Microphone in |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| Audio input |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| DVI port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Type-A downstream ports quantity |
4 |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
| Plug and Play |
Yes |
| Number of OSD languages |
16 |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-5 – 35° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-175 – 175° |
| Swivelling |
Yes |
| Pivot |
Yes |
| Adjustable height (max) |
15 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
413378 |
| Energy efficiency scale |
A to G |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (off) |
0.23 W |
| Power consumption (standby) |
0.32 W |
| Power consumption (typical) |
16.73 W |
| Energy consumption (SDR) per 1000 hours |
18 kWh |
| Energy efficiency class (SDR) |
E |
| Operational conditions |
| Non-operating altitude |
5000 – 12192 m |
| Operating altitude |
0 – 5000 m |
| Storage relative humidity (H-H) |
5 – 93% |
| Operating relative humidity (H-H) |
10 – 85% |
| Storage temperature (T-T) |
-25 – 55 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight (without stand) |
2.8 kg |
| Height (without stand) |
325.6 mm |
| Depth (without stand) |
49.4 mm |
| Width (without stand) |
539.1 mm |
| Weight (with stand) |
4.6 kg |
| Height (with stand) |
518.9 mm |
| Depth (with stand) |
219.5 mm |
| Width (with stand) |
539.1 mm |
| Packaging data |
| USB cable length |
1.8 m |
| Package type |
Box |
| Package weight |
6.55 kg |
| Package height |
408 mm |
| Package depth |
159 mm |
| Package width |
752 mm |
| Packaging content |
| Power cable length |
1.8 m |
| HDMI cable length |
1.8 m |
| DisplayPort cable length |
1.8 m |
| Audio cable length |
1.5 m |
| Cables included |
AC, Audio (3.5mm), DVI, DisplayPort, HDMI, VGA |
| Sustainability |
| Doesn’t contain |
PVC/BFR |
| Sustainability certificates |
EPEAT Silver |
| General |
| Product family |
P1 |
| Other features |
| Certification |
True |
| Light effects |
No |
| Mean time between failures (MTBF) |
50000 h |
| Recyclable packaging material |
100% |
| Heavy metals free |
Hg (mercury) |
| Bezel thickness type |
Frameless |
| Exterior finish type |
Textured |
| Compatibility |
VESA-P1 |
| Recycling data |
| Post-consumer recycled plastic |
85% |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
