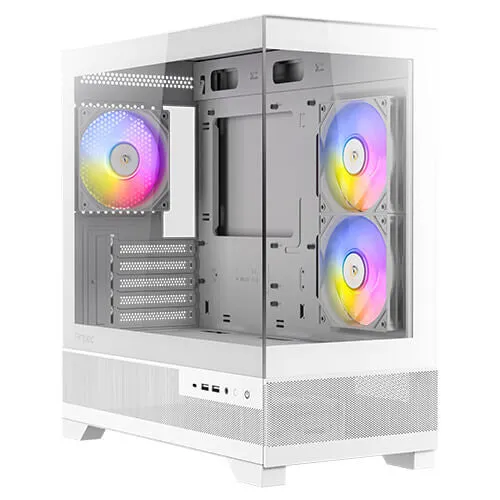

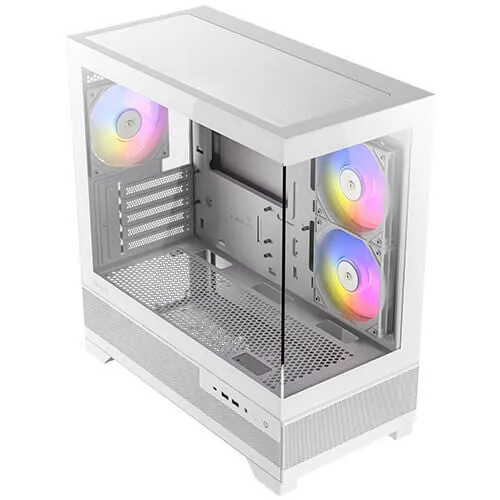

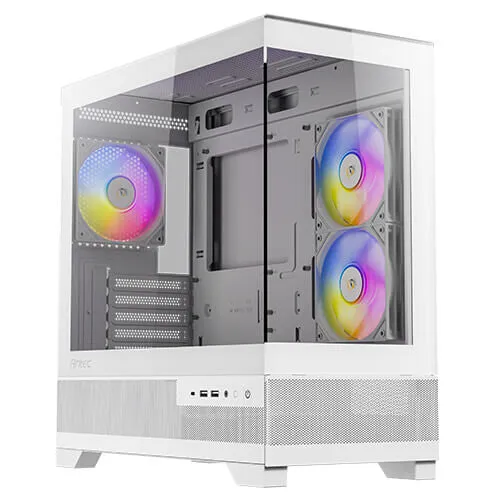

Antec CX500m RGB Mini Tower White
- Mini Tower PC
- ITX, micro ATX
- Supported HDD sizes: 2.5,3.5″
- Number of 2.5″ bays: 1 Number of 3.5″ bays: 2
- Tempered glass panel(s) Anti-dust filter
- Glass, Steel
- White
Panoramic 270° View
Standing out with full-view design on the seamless steel-tempered glass, CX500M RGB’s left and front panel offer an unobstructed view of your build, creating a stunning showcase for your components.
Vertical Cooling with Massive Air Intake
Bottom-up vertical airflow via mesh on lower front, lower left, and right side accelerates the heat dissipation.
Tool-Free Panels
Front and side panel adopt fixing stud design, which makes assembly and disassembly easier and helps avoid possible glass breakage.
Pre-Installed 3 x 120mm Fixed Mode RGB Fans
Daisy-chained to PSU.
Full Reusable PCI Slot Covers
Reusable PCI slot covers fulfill an optimal build experience.
EVA PSU
Cushion Pads
With EVA anti-vibration foams on the power supply mount position, your lovely PC hardware is well protected against any jar or resonance caused by PSU operation.
| Design | |
|---|---|
| Maximum PSU length | 27 cm |
| Maximum graphics card length | 41.5 cm |
| Maximum CPU cooler height | 16.5 cm |
| RGB control button | Yes |
| On/off button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Number of 2.5″ bays | 1 |
| Number of 3.5″ bays | 2 |
| Supported motherboard form factors | ITX, micro ATX |
| Product colour | White |
| Material | Glass, Steel |
| Type | PC |
| Form factor | Mini Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,140,240,280 mm |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Side fans diameters supported | 120 mm |
| Number of side fans supported (max) | 2 |
| Side fans installed | 2x 120 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| Weight & dimensions | |
|---|---|
| Weight | 6.34 kg |
| Height | 446 mm |
| Depth | 436 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 8.2 kg |
