1M/3M/5M Victron Orion-Tr Smart 12/12 30A Isolated DC-DC Charger Kit
We’ve put this kit together to supply everything you need to wire up this 30A Victron Energy Orion-Tr Smart DC-DC charger.
For use in dual battery systems in vehicles where the alternator and the starter battery are used to charge the leisure battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

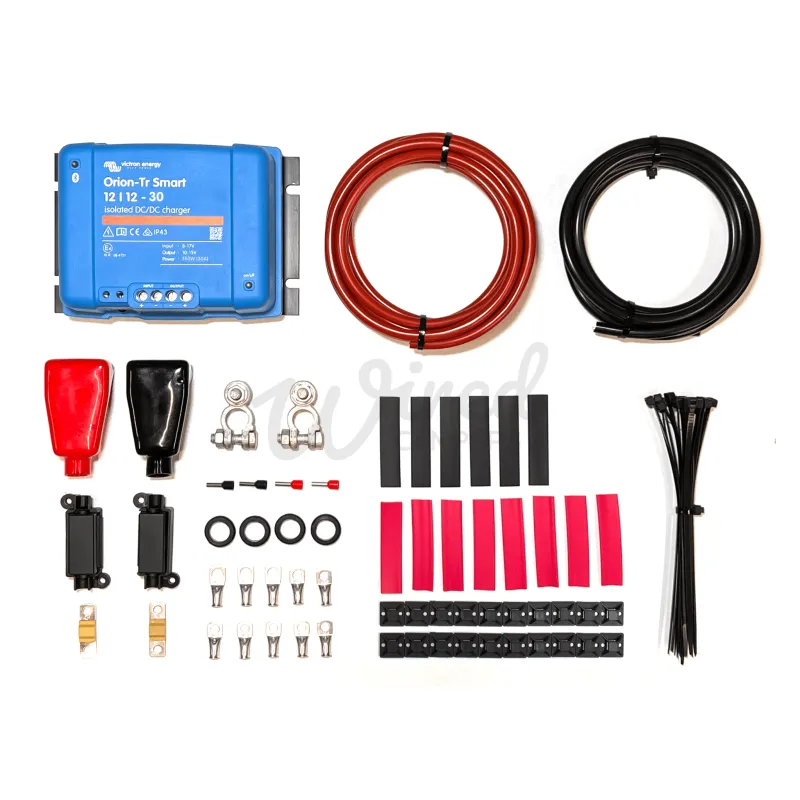

KIT CONTENTS
- Victron Orion-Tr Smart DC-DC 12/12-30A DC-DC Isolated Charger (360W)
- 1M/3M/5M 16mm2 Red hi-flex battery cable
- 1M/3M/5M 16mm2 Black hi-flex battery cable
- Positive and negative leisure battery terminal set (8mm post)
- 2 X PVC battery terminal covers
- 2 X Bolt down MIDI fuse holders
- 2 X 60 AMP MIDI fuses
- 2 X 16mm2 8mm Hole copper crimp terminals
- 7 X 16mm2 6mm Hole copper crimp terminals
- 4 X 16mm2 Boot lace ferrules
- 8 X 70mm Red heat shrink sleeve
- 6 X 70mm Black heat shrink sleeve
- 20 X Self adhesive cable tie bases
- 20 X Cable ties
TECHNICAL INFORMATION
The Orion-Tr Smart charger is suitable for both lead acid and lithium batteries.
- Input voltage range – 10-17V
- Under voltage shut down – 7V
- Under voltage restart – 7.5V
- Nominal output voltage – 12.2V
- Output voltage adjust range – 10-15V
- Cont. output current at nominal output voltage and 40 °C – 30A
- Cont. output power at 25 °C – 430W
- Cont. output power at 40 °C – 360W
- Efficiency – 87%
- No load input current – < 80 mA
- Standby current – Less than 1mA
- Galvanic isolation – 200 VDC between input, output and case
- DC connection – Screw terminals
- Maximum cable cross-section – 16 mm² AWG6
- Weight – 1.8 kg
- Dimensions – 130 x 186 x 80 mm
