101071 – GF120 4 Burner Single Tank Gas Fryer with Twin Baskets
Model Number: GF120

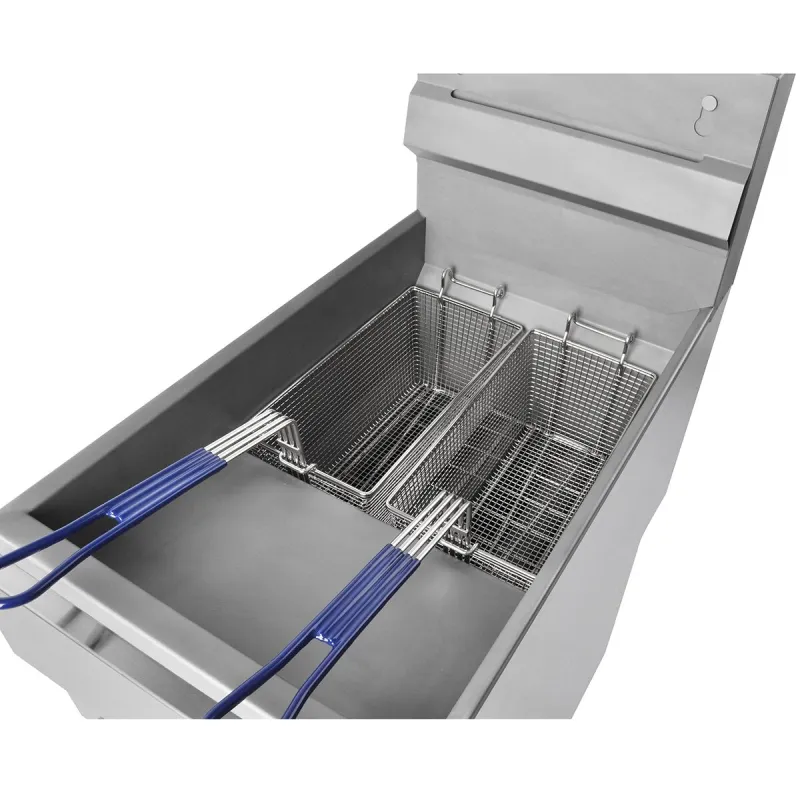

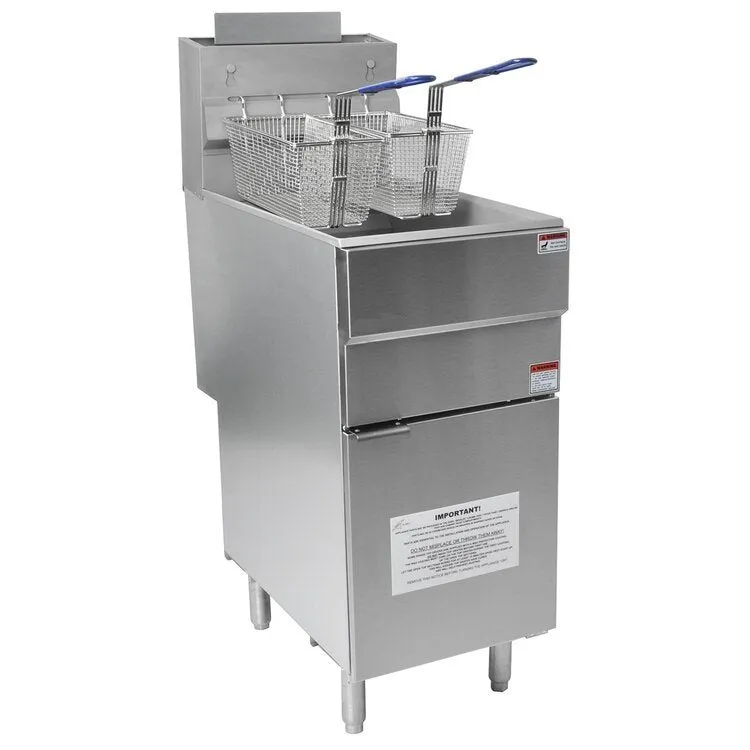

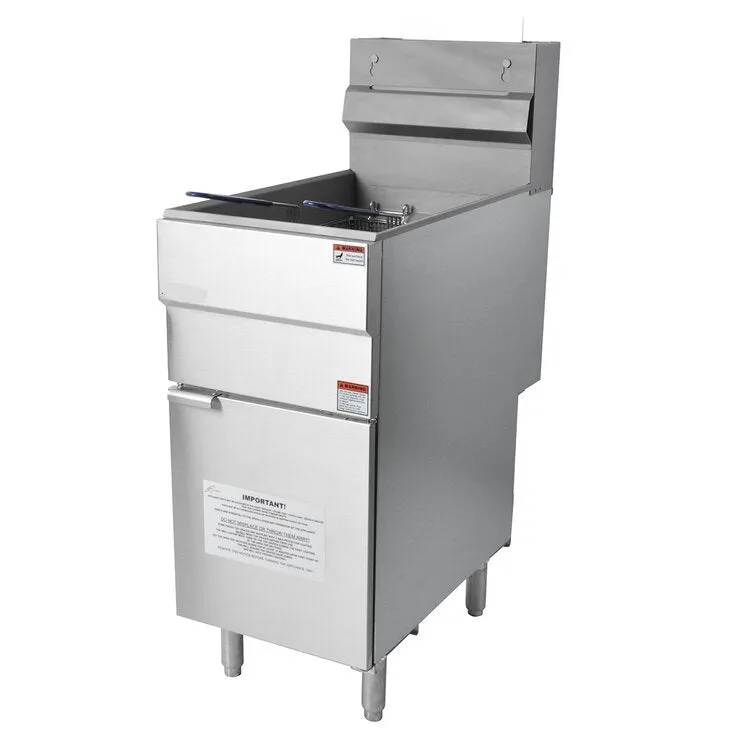

The heavy duty Hamoki GF120 Free Standing Single Tank Fryer has stainless steel construction and comes with a variety of useful and time-saving features. Some of these include an integrated splash back guard, triple tube and cool zone feature and drainage spout for quick and easy maintenance. The fryer also comes complete with two easy clean baskets.
- Vertical cast iron burner – each 30,000 BTU/hr
- Stainless steel vat, available in 4 models
- 6″ stainless steel adjustable heavy duty legs
- Tube design with baffles inside for better heat transfer
- Continuous pilot for easy start of main flame
- Chromed basket with plastic coating handle
- Large cold zone to prevent scorching of food particles at the bottom
- Robertshaw control system to guarantee best performance
- Prompt temperature recovery to make sure fries are crispy
- 1 x ¼” drain valve for easy drainage of oil
- 1 x 3/4″ NPT Rear Gas Connection
- Thermostat adjusts from 93℃/200°F to 204℃/400°F
- 450°F/232℃ hi-limiter guarantees safety
- Optional with castors
- Height Adjustable Feet
This product is covered with a Manufacturer’s 1 Years Parts Warranty.
Please note, that with ongoing enhancements and improvements, this product may vary slightly from the content displayed.
DIMENSIONS: 394 x 752 x 1182 mm
FRYER BASKET SIZE: 311 x 152 x 165 mm
POWER: 35.2 kW
CAPACITY: 25 Litres
WEIGHT: 71 KG
INPUT BTU/hr: 120,000
MATERIAL: Stainless Steel
CONTROL UNIT: Toggle
TECH SPECS
OVERALL DRAWING
EXPLODING DIAGRAM & PARTS LIST
TANK DRAWING
